Curved Left Turnout BWl2/3 R2 358mm 30° ROCO 42556 - HO 1/87 - Code 83 [ROCO LINE] : Zen Cart!, The Art of E-commerce

Brand : ROCO   |   Référence : RO42556
HO : 1/87 2R
Prix unitaire TTC :
€ 28.99

Paiement en plusieurs fois sans frais:

In stock
Delivered within 48h
Shipping will be free!

La quantité désirée n'est pas disponible ? Contactez nous

Secure Payment

Résumé

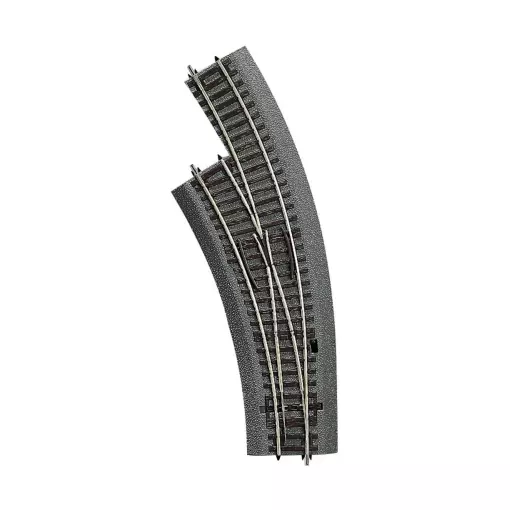

A Left Curved Turnout BWl2/3 under part number 42556 from manufacturer ROCO.

Scale : HO 1/87th.

Code: 83.

Angle: 30°.

Ray: R2 358mm to R3 419.6 mm.

Track width with Ballast: 56mm.

Type of Ballast: Flexible Rubber [ROCO LINE].

Tip:

  • With core polarisation pre-installed.
  • It is possible to install the Roco 42620 (analogue) or Roco 42624 (digital) motor on Rocoline turnouts with ballast.
  • For analogue use, the Roco 10520 control box can be used to control motorised turnouts/junction crossings.
  • For digital use, the decoder integrated into the Roco 42624 motor allows direct control by a digital control unit.

Description

CAUTION: Do not use the switch without it being clipped into a switch, otherwise the mechanism may be damaged!

- Low switching current consumption.

- End of travel switching.

Additional features:

  • Equipped with fishplates & Rail profiles are made of maillechort (copper and brass alloy) allowing easy maintenance, longer life and reliable electrical continuity of the track.
  • phonetically isolate your model railway layout and thus limit the rolling noise of your rolling stock Sleepers wood & plastic ballast with relief for realistic rendering.
  • Extreme easeof placement! 2-rail system, Direct Current with ballast.
  • The junction between 2 rails is discreet.
  • Height of rail profile  : 2.1 mm in code 83

Find the entire ROCO LINE track with flexible ballast from the manufacturer ROCO :

Rail Straight:

  • A Rail Straight G4 Flexible, 920mm, under part number 42506.
  • One Rail straight G1, wooden crossbar, 230mm, under reference 42510.
  • One Rail straight DG1, wooden crossbar, 119mm, under reference 42511.
  • One Rail straight G1/2, wooden sleeper, 115mm, under reference 42512.
  • One Rail straight G1/4, wooden sleeper, 57.5mm, under reference 42513.

Special straight rails:

  • One Supply rail G ½ Digital, 115mm, under reference 42517.
  • One Switching rail G ½, 115mm, under reference 42518.
  • One Decoupling rail G ½, 115mm, under part number 42519.
  • One Supply rail G ½ Analogue, 115mm, under part number 42521.

Curved rails:

  • One Curved rail, R2 358mm, 30°, under part number 42522.
  • One Curved rail, R3 419.6mm, 30°, under part number 42523.
  • One Curved rail, R4 481.2mm, 30°, under reference 42524.
  • One Curved rail, R5 542.8mm, 30°, under reference 42525.
  • One Curved rail, R6 604.4mm, 30°, under reference 42526.
  • One Curved rail, R9 826.4mm, 15°, under reference 42457.
  • One Curved rail, R2 ¼ 358mm, 7.5°, under reference 42508.
  • One Curved rail, R3 ¼ 419.6mm, 7.5°, under reference 42509.
  • One Curved rail, R10 888mm, 15°, under reference 42528.
  • One Curved rail, R20 1962mm, 5°, under reference 42530.

Right Turnouts:

  • A Left Turnout Wl15, R 873.5mmm, 15°,under reference 42532.
  • A Right Turnout Wr15, R 873.5mmm, 15°,under reference 42533.
  • A Left Turnout Wl10, R 1946mmm, 10°, under reference 42580.
  • A Right TurnoutWr10, R 1946mmm, 10°, under reference 42581.

Curved turnouts:

  • A Left-hand curved turnout BWl2/3 under reference 42556.
  • A Right-hand curved switchBWr2/3 under reference 42557.
  • A Left-hand curved switch BWl5/6 under reference 42570.
  • A Right-hand curved switchBWr5/6 under reference 42571.
  • A Left-hand curved switch BWl3/4 under reference 42572.
  • A Right-hand curved switch BWr3/4 under reference 42573.
  • A Left-hand curved switch, long, BWl9/10 under reference 42568.
  • A Right-hand curved switch, long, BWr9/10 under reference 42569.

Crossing:

  • One Single Junction Crossing (SJC) EKW15,15° & R 531mm, 230mm under reference 42546.
  • An Asymmetrical Triple Switch DWW15, 15° & R 873.5mm, 287.5mm under part number 42543.
  • A Twin Junction Crossing (TJD) DKW10,10° & R 959mm, 345mm under part number 42549.
  • One Traversée Jonction Simple (TJS) EKW10,10° & R 959mm, 345mm under reference 42591.
  • One Standard crossing K15, 230mm & 15°, under reference 42597.
  • One Standard crossing DGV15, 115mm & 30°, under reference 42598.

Track accessories:

  • One bag of 400 short nails, 11.5mm, under reference 10000.
  • One bag of 500 long nails, 15mm, under reference 10001.
  • One Heurtoir under reference 42267.
  • One Bag of Conductive Splices under reference 42610.
  • One Bag of Insulating Splices under reference 42611.
  • One Bag of Transition Splices, Code 83 & Code 100 under reference 42612.
  • One Pair of Feed Splices under part number 42613

Accessories for Switches:

  • One Switch Motor without decoder, under part number 42620.

Track sets:

  • B track setB track setunder reference 42010.
  • C track setC track setunder reference 42011.
  • Set of way D under reference 42012.
  • Set of way E under reference 42013.

Technical sheet

Angle (degrees)
30
Track code
83
Scale
HO : 1/87
Material
Plastic
Radius (mm)
358
419,6
Operating system
2 Rails - Direct current
Length (mm)
248
