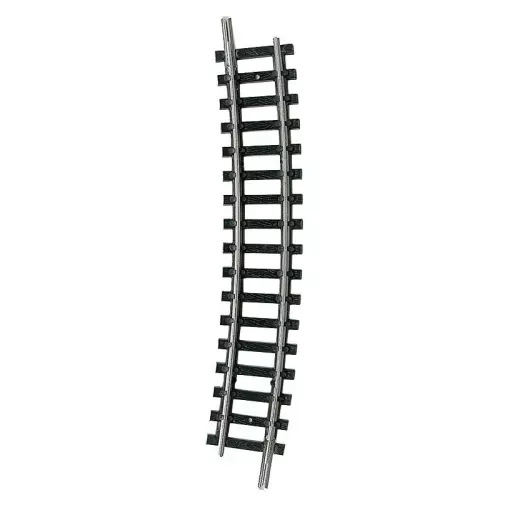

Minitrix offers a curved track in Scale N: 1/160th under reference 14917 with a angle of 15° and a radius of 329 mm.
The track to scale N : 1/160th from the brand Minitrix offers a wide range of straight track as well as curved track, switches and crossings to offer a maximum possibility to build a model train layout using a minimum amount of space.
The track sections are made from a rust-free metal alloy guaranteeing reliable contact between the wheel and the rails.
The width of a Minitrix track with sleepers is 16 mm, and the height of the profile is 2.1 mm in code 80.
The Minitrix brand offers 8 different spokes with a total of 16 curved rails:
-Large curved rail R1 with a radius of 194.6 mm and a angle of 30° under part number 14912.
-Medium curved rail R1 of a radius of 194.6 mm and of a angle of 24° under reference 14914.
-Small curved R1 rail with a radius of 194.6 mm and a angle of 6° under reference 14916.
-Large curved rail R2 of a radius of 228.2 mm and of a angle of 30° under reference 14922.
-Medium curved rail R2 of a radius of 228.2 mm and of a angle of 24° under reference 14924.
-Small curved R2 rail with a radius of 228.2 mm and an angle of 6° under reference 14926.
-Large curved rail R2a with a radius of 261.8 mm and a angle of 30° under reference 14910.
-Medium curved rail R2a of a radius of 261.8 mm and of a angle of 15° under reference 14911.
-Small curved R2a rail with a radius of 261.8 mm and a angle of 7.5° under reference 14919.
-Large curved rail R2b of a radius of 295.4 mm and of a angle of 30° under reference 14920.
-Medium curved rail R2b of a radius of 295.4 mm and of a angle of 15° under reference 14921.
-Small curved rail R2b with a radius of 295.4 mm and a angle of 7.5° under reference 14929.
-Curved rail R3 with a radius of 329 mm and an angle of 15° under reference 14917.
-Curved rail R4 with a radius of 362.6 mm and an angle of 15° under reference 14927.
-Curved rail R5 with a radius of 492.6 mm and an angle of 15° under reference 14918.
-Curved rail R6 of a radius of 526.2 mm and of a angle of 15° under reference 14928.
There is also the flexible track which can be used as a curved track with a length of 730 mm under reference 14901.
For each radius that follow each other, the curves are spaced 33.6 mm apart.
Easy to install, Minitrix rails are supplied with fishplates already installed enabling the junction between two rails to be made.
For fixing, the Minitrix brand offers metal clips (optional) under reference 66528.
For permanent installation, there are screws as well as fixing nails in the Minitrix brand under references 66548 / 66537.
The metal plates and plastic plates sold separately are under references 66525 / 66539.
The brand Minitrix offers a gabarit for its tracks under reference 66600 in order to make an accurate network plan.
