Name: Curved rail radius 30° - Minitrix 14910 - N : 1/160 - code 80 - 320 mm
Brand: MINITRIX
SKU: TR14910
Price: 3.99 EUR
Availability: InStock

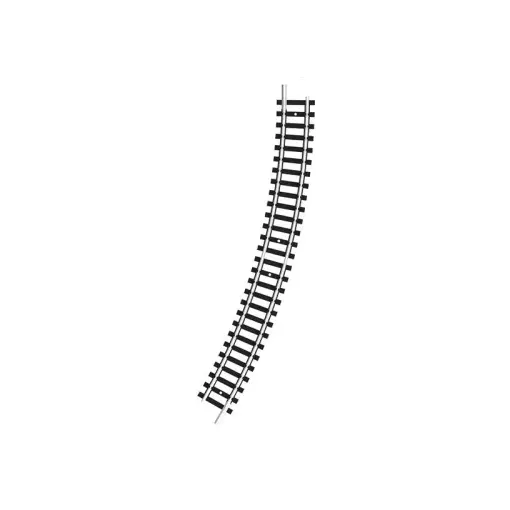

Curved track element Minitrix to scale N : 1/160th with a radius R2a of 261.8 mm and an angle of 30° under reference 14910 for model railroading.

Unballasted curved rail under reference 14910 from manufacturer MINITRIX.

Description

Under part number 14910 from manufacturer MINITRIX, here's a straight, unballasted 320 mm rail.

Minitrix offers a curved rail in Scale N: 1/160th under reference 14910 with a angle of 30° and a radius of 261.8 mm.

The track sections are manufactured from a stainless metal alloy guaranteeing reliable contact between the wheel and the rails.

The width of a Minitrix track with sleepers is 16 mm, and the height of the profile is 2.1 mm in code 80.

The Minitrix brand offers 8 different radii with a total of 16 curved rails:

Large curved rail R1 with a radius of 194.6 mm and a angle of 30° under reference 14912.
Medium curved rail R1 of a radius of 194.6 mm and of a angle of 24° under reference 14914.
Small curved R1 rail with a radius of 194.6 mm and a angle of 6° under reference 14916.
Large curved rail R2 with a radius of 228.2 mm and a angle of 30° under reference 14922.
Medium curved rail R2 of a radius of 228.2 mm and of a angle of 24° under reference 14924.
Small curved R2 rail with a radius of 228.2 mm and an angle of 6° under reference 14926.
Large curved rail R2a with a radius of 261.8 mm and a angle of 30° under reference 14910.
Medium curved rail R2a with a radius of 261.8 mm and a angle of 15° under reference 14911.
Small curved R2a rail with a radius of 261.8 mm and a angle of 7.5° under reference 14919.
Large curved rail R2b with a radius of 295.4 mm and a angle of 30° under reference 14920.
Medium curved rail R2b with a radius of 295.4 mm and a angle of 15° under reference 14921.
Small curved rail R2b with a radius of 295.4 mm and a angle of 7.5° under reference 14929.
Rail curved R3 of a radius of 329 mm and an angle of 15° under reference 14917.
Rail curved R4 of a radius of 362.6 mm and of an angle of 15° under reference 14927.
Rail curved R5 of a radius of 492.6 mm and an angle of 15° under reference 14918.
Rail curved R6 of a radius of 526.2 mm and an angle of 15° under reference 14928.

Easy to install, Minitrix rails are supplied with fishplates already installed allowing the junction between two rails to be made.
For fixing, the Minitrix brand offers metal clips under reference 66528.
For permanent installation, there are screws as well as fixing nails in the Minitrix brand under the references 66548 / 66537.
The metal plates and plastic plates sold separately are under references 66525 / 66539.
The brand Minitrix offers a gabarit for its tracks under reference 66600 in order to make an accurate network plan.
