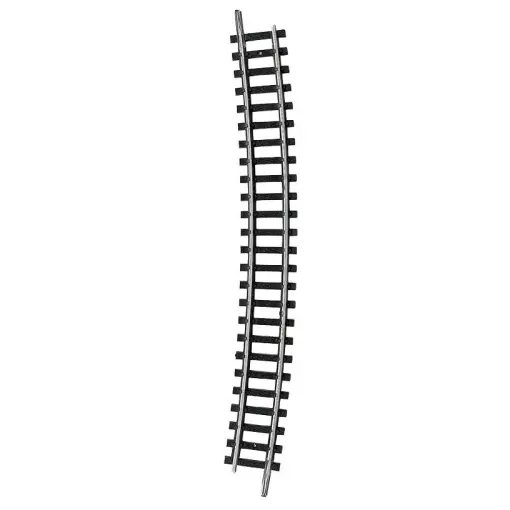

Curved track - R5 radius 492.6 mm 15° - Minitrix 14918 - N : 1/160 - code 80

Brand : MINITRIX   |   Référence : TR14918
N : 1/160 2R
Prix unitaire TTC :
€ 2.99

Paiement en plusieurs fois sans frais:

In stock
Delivered within 48h
From € 4.99

La quantité désirée n'est pas disponible ? Contactez nous

Secure Payment

Résumé

Curved track element Minitrix under reference 14918 for model railroading.

Profiled in code 80.

Scale N: 1/160th.

Rayon R5 of 492.6 mm.

Angle:15°.

Black crossbars.

With ribs fitted.

It takes 24 Minitrix 14918 elements to make a circle 985.2 mm diameter.

Description

Minitrix offers a curved track in Scale N: 1/160th under reference 14918 with a angle of 15° and a radius of 492.6 mm



The track to scale N : 1/160th from the brand Minitrix offers a wide range of straight track as well as curved track, switches and crossings to offer a maximum possibility to build a model train layout using a minimum amount of space.

The track sections are manufactured from a rust-free metal alloy guaranteeing reliable contact between the wheel and the rails.

The width of a Minitrix track with sleepers is 16 mm, and the height of the profile is 2.1 mm in code 80.

There is also the flexible track which can be used as a curved rail with a length of 730 mm under part number 14901.



For each radius that follow each other, the curves are spaced by 33.6 mm.

Easy to install, Minitrix rails are supplied with fishplates already installed enabling the junction between two rails to be made.

For fixing, the Minitrix brand offers metal clips (optional) under reference 66528.

For permanent installation, there are screws as well as fixing nails in the Minitrix brand under the references 66548 / 66537.

The metal plates and plastic plates sold separately are under references 66525 / 66539.

The brand Minitrix offers a gabarit for its tracks under reference 66600 in order to make an accurate network plan.

Technical sheet

Angle (degrees)
15
Track code
80
Scale
N : 1/160
Material
Plastic
Radius (mm)
492,6
Operating system
2 Rails - Direct current
