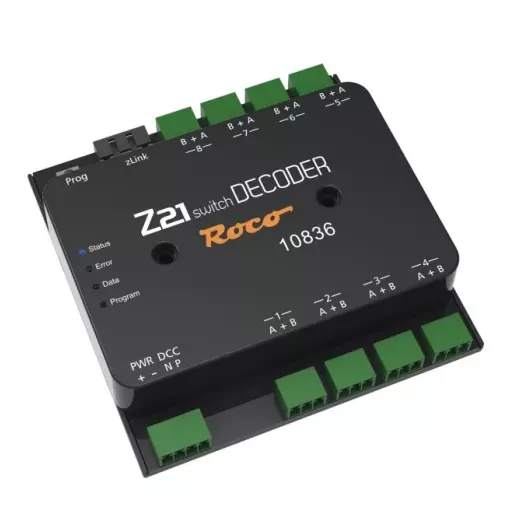

Z21 switch DECODER
The Z21 switch DECODER is a universal DCC switching decoder with 2 A output power for up to 8 switches or 16 LED and incandescent lamp consumers.
Easy connection
To avoid placing unnecessary demands on the outputs of the control unit or booster, a separate DC power supply can be connected. To make wiring as simple as possible, it is also possible to simply use the rail signal as the power supply. For this purpose, the outputs are also protected against overload and short-circuit.
Adjustable outputs
The 8 pairs of outputs can be set independently of each other to different modes. These are already pre-configured and can be selected easily. Each pair of outputs can also be individually regulated, so that lighting can be precisely matched.
Perfect for the following applications :
? Double coil drive
? Single light signals
? Lighting control
? Relay control
Highlights
? 8 pairs of independently adjustable outputs
? Power supply via optional external power supply and switching unit
? Programmable with RailCom® in full track (POM)
? Overload and short-circuit protection
? Update functionality
Configurable modes
? Standard - With configurable activation time for double coil drives
? Push - Switching of turnouts and uncouplers according to the activation time on the remote control (like 10775)
? Continuous bistable - Activation/switching of lighting and signals
? Continuous bistable - Switching on/off simulating incandescent lamps
? Alternating flasher
? Alternating flasher with incandescent lamp simulation
? Switch numbers 1-2040
RailCom is a registered trademark of Lenz Elektronik GmbH, Gießen
