This module is used to enumerate various sound effects for your railroad models in HO: 1/87th; N: 1/160th ; TT: 1/120th or O: 1/43rd.
.The brand ESU offers a SignalPilot decoder 16 outputs of 250 mA under the reference 51840.
Connection with disconnectable terminals. Outputs, lighting effects and brightness can be individually switched (on / off / random).
These can generate blinking or pulsed light. You can also adjust the brightness and frequency of your lighting as you wish.
Various lighting options are available to you such as: fluorescent lamp effect, soft dimming, faulty fluorescent lamp, imitation gas lantern, battery-powered lighting, flickering light, and many more.
Outputs protected against short circuit and overload.
Features push functions and removable terminals.

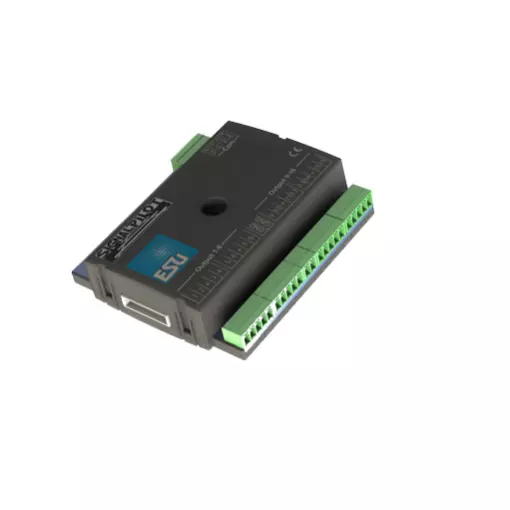

Presenting the ESU 51840 decoder,
By havingflexible programming, this decoder is the most versatile of all accessory decoders.
This SignalPilot equipped with 16 outputs, which will allow the assimilation of micro-lamps or LEDs. With outputs designed for "push / pull", this module is capable of using conventional light sets, or even daylight signals with common ground.
It can also control semaphore signals and turnout motors. Programming allows any address or combination of addresses to be assigned to each output.
It can also be programmed to control any type of signal.
In analogue mode, it is possible to take advantage ofseveral features without actually controlling them from a digital control station. There are 4 inputs which offer the possibility of controlling the signals using push buttons.
The firmware SignalPilot can be updated at any time via the LokProgrammer. This may be necessary when there are new signals offered by ESU.
