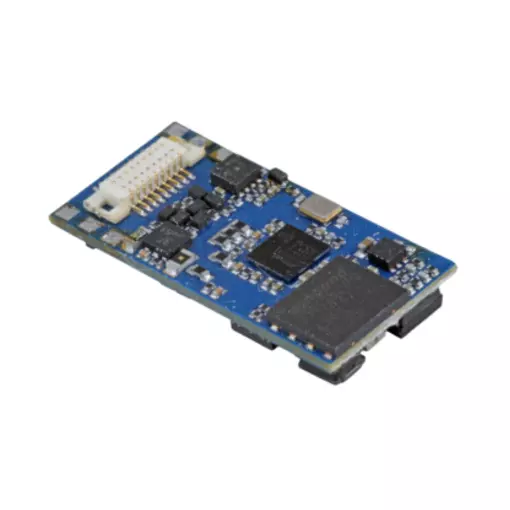

Esu offers a LokSound V5 micro sound decoderunder part number 58814 for N 1/160th scale ; TT 1/120th scale and HO 1/87th scale model trains.
This LokSound V5 micro operating in DCC / MM / SX / M4, is equipped with the latest RailComPlus technology, making it easy to connect to an appropriate digital control unit
Features of the LokSound V5 micro decoder:
This digital device is a multi-protocol decoder, mastering the data format in DCC. In DCC format, the decoder can vary its speed between 14 and 128 notches, offering up to 32 functions.
Thanks to RailComPlus technology, this decoder automatically connects to an appropriate digital exchange. It also masters all DCC programming modes, CV values on the main track can be read with suitable control centres. There are auxiliary registers for control centres that can only program CVs between 1 and 255.
This module recognises Märklin braking sections and Zimo, HLU / Zack e Lenz ABC controls. You can also proceed with DCC braking modules, stopping with a Selectrix brake diode.
The decoder can be used on DCC analogue miniature networks. The speed can then be programmed independently for each motor. The decoder automatically switches between the different operating modes.
The decoder can also be used with the DCC miniature analogue networks.
The sound characteristics of the decoder under reference 58814:
- The decoder can record up to 10 channels simultaneously, each offering sound quality of up to 16 bits / 31,250 kHz.
- This module has a large sound memory, thanks to its 128 MBit storage space, allowing several auditory scenarios to be created!
- The volume of each sound effect can be adjusted independently.
The motor control of the ESU digital device:
The motor control has benefited from a number of improvements, such as a PWM frequency with variable adjustment between 10 kHz and 50 kHz, ensuring very quiet operation. Gone are the hums of the past, replaced by silent operation!
The load control now has up to 10 HP, adjustable at any time.
The "Autotune" function automatically calibrates the decoder to the engine.The LokPhone is also equipped with an "Autotune" function.
This LokPilot V5 provides power up to 0.9 A.
The safety aspect of the ESU 58814 decoder:
This digital module features outputs that are protected in the event of electrical overloads, preventing damage to this equipment.
