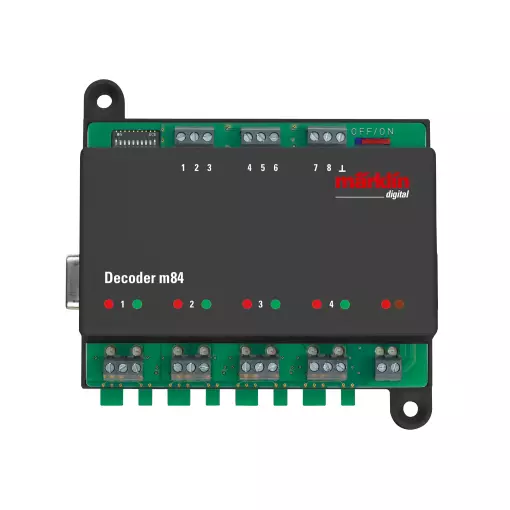

Direct current switching receiver for lighting, motors, signal lights (74371, 74380,74391) and other electrical accessories. The m 84 provides support for Motorola and DCC digital formats. Digital addresses can be defined via coding switches or via the programming channel. The available addressable range extends up to address 320 for the Motorola format and up to address 2040 for the DCC format. The m84 includes 4 relays for isolated switching of loads. Use of the 66361 power supply ensures the bistable state of the relays and storage of the switching state. Light signals can be controlled using an equivalent traction current switching function. The m84 also has 8 inputs for manual relay switching (like the 7244 remote switch). Decoders 60831 and 60841 can be connected in series. Connection is via clamp terminals. Maximum current rating approx. 5 A.
.
